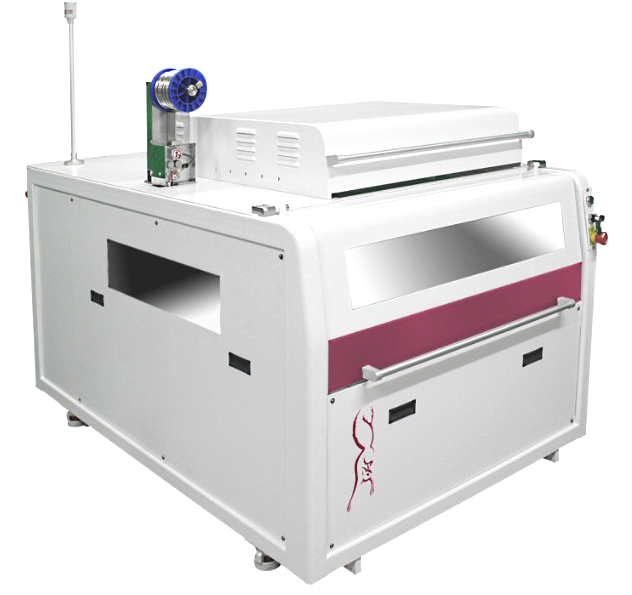

Jade MK 系列精簡型選焊爐

Entry-level single point selective soldering system

入門級單點選擇性焊接系統

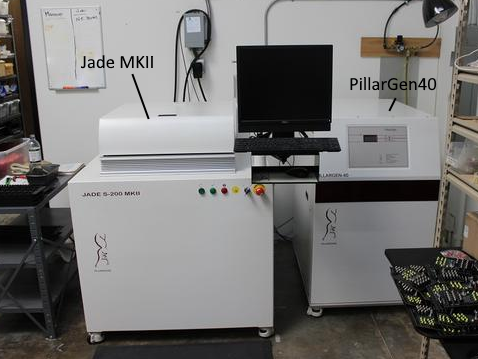

Pillarhouse作為全球知名專業的選擇性焊接的製造商,其研發的機型從桌上型至在線型的機型種類眾多,MK II則一直為其經濟入門款的最佳銷售熱門款式,其All in One單機簡潔設計,可搭配PillarGen40氮氣製造機,讓生產線的成本及效益達到最佳.(如下圖配置)

憑藉Jade Mk II多年來在市場上銷售輝煌的經驗‚及其所有可靠的功能及設計‚Jade Mk IV設定了更高的性能標準為目標.

Jade MK IV入門級系統旨在滿足需要高水平生產靈活性的中小批量生產商的需求，以極低的成本提供無與倫比的選擇性焊接質量。

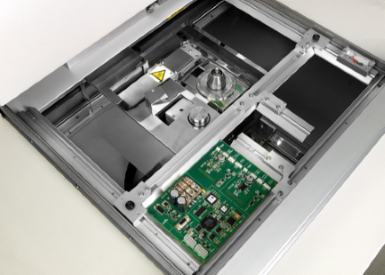

Jade MK IV是一種手動加載系統‚採用通用可調工具載體‚可容納高達508x610mm（20×24“）的PCB或託盤。

設備規格

508x610mm (20×24″) board size
Integral PC and machine mounted TFT monitor
Inerted Nitrogen system
Motorised auto-solder top-up (wire feed) & solder level detect
Titanium Drop-Jet fluxer
Set of AP style solder nozzle tips
Internal fume extraction
Colour programming camera
Process viewing camera
Manual fiducial correction
Auto-nozzle conditioning system
Solder wave height measurement and correction
New Solder bath and pump design
Pump rpm monitoring
Universally adjustable tooling carrier
Thermal nozzle calibration system using integrated setting camera (requires manual correction)
Enhanced PillarCOMM Windows^® based ‘Point & Click’ interface
PillarPAD offline programming package
Multiple level password protection
